| Quantity: | |
|---|---|
BMSY-80-E6-FD-D
Xeriwell or Others
| Item: | Hydraulic Motor | Type: | Low Speed High Torque |
|---|---|---|---|
| Flange: | Magneto Mounting | Shaft: | Spline Shaft |
| Materia: | Cast Iron | Warranty: | 12 Months |
| Highlight: | four holes Hydraulic Motor,14teeth spline shaft Hydraulic Motor,Magneto mount Hydraulic Motor | ||

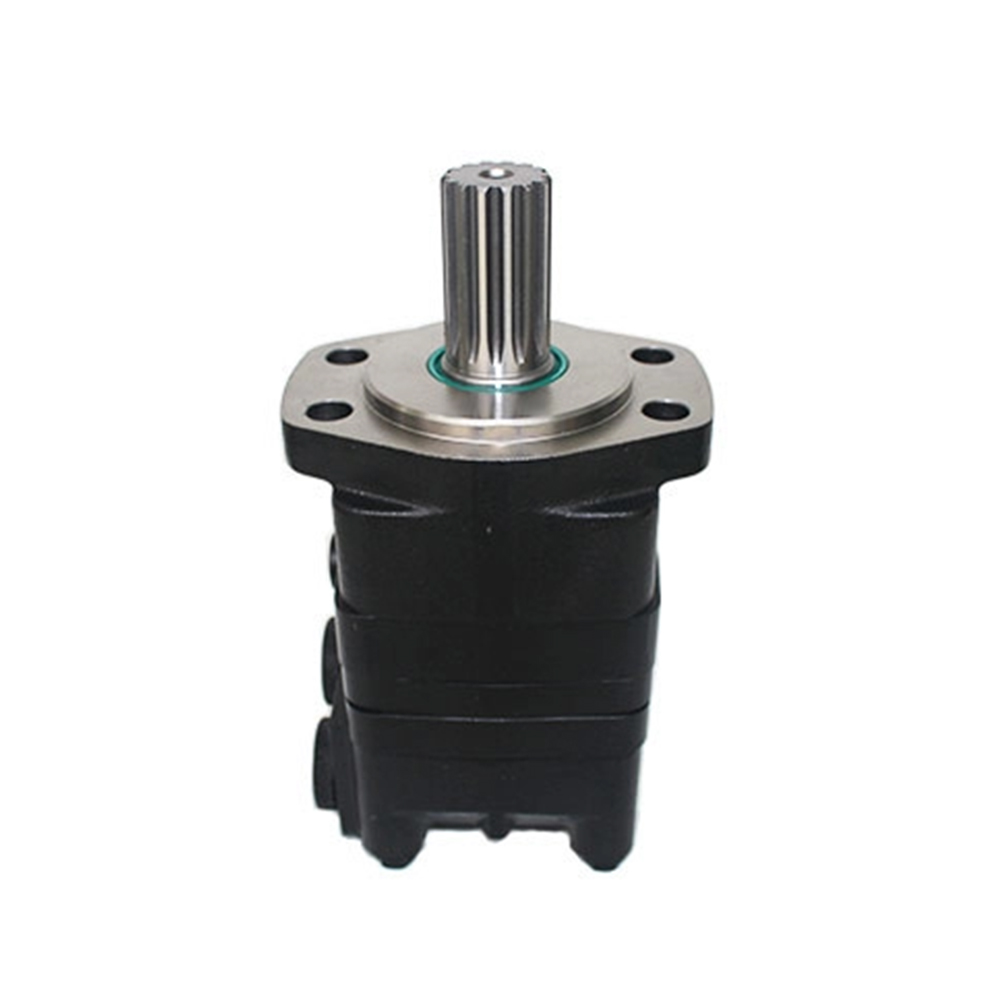

BMSY Hydraulic Motor, BMSY-80-E6-FD-D,80ml/r, Magneto mount, four holes, 14teeth spline shaft, with BSPP ports
Product details:
Displacement:80cc

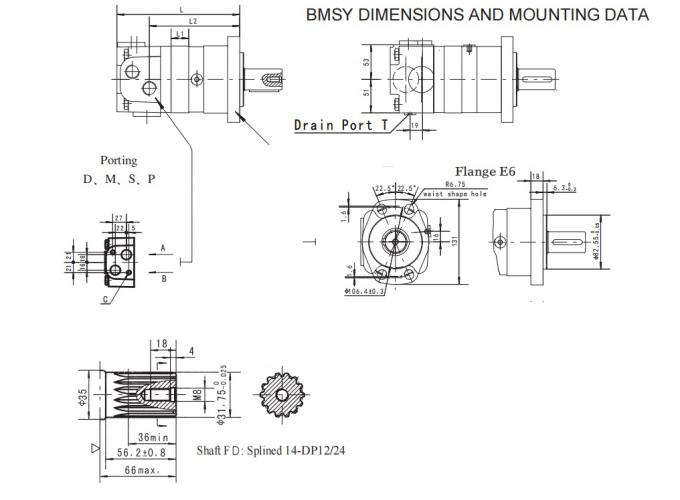

Flange:4-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
Shaft:Long Shaft Ø31.75 ,splined key 14-DP12/24
Ports:G1/2 Manifold Mount,2-M10 , G1/4
Special feture:the ports to be oriented inline with one of the mounting bolts
BMSY introduction:
This motor is a hydraulic disc motor, because it's widely used on kind of drills of Agricultural,Farm, Construction, Industrial and heavy machineries. it has numerous applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.
Main Specifications:
| Type | BMSY 80 | BMSY 100 | BMSY 125 | BMSY 160 | BMSY 200 | BMSY 250 | BMSY 315 | BMSY 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute
Gerotor motor working principle
Advantages of Gerotor Motors
High torque output Ideal for heavy loads.
Smooth operation Consistent output without pulsations.
Compact design Efficient use of space.
Reversible Can operate in both clockwise and counterclockwise directions.
Wide speed range Versatile for various applications.
Applications of Gerotor Motors
Construction equipment Excavators, cranes, drilling rigs
Agricultural machinery Tractors, harvesters
Industrial machinery Presses, conveyors, mixers
Marine applications Winches, steering systems
Mobile equipment Forklifts, aerial work platforms
Would you like to know more about specific applications or how to select the right Gerotor motor for your project
