| Quantity: | |
|---|---|
BMR-250-2ADB
Xeriwell or Others
| Product: | Gerotor Hydraulic Motor | Replace: | Eaton 103-, 106-, |
|---|---|---|---|
| Alternative: | M+S MR Series | Displacement: | 250 Ml/r |
| Flange: | 2 Bolt, Rhomb | Shaft: | 25mm, Paraller Key |
| Max Flow: | 75 L/min | Max Speed: | 300 Rpm |
| Net Weight: | 8.5 Kgs | Measurement: | 3 Pcs/ Carton/ 43x29x18cm |
| Highlight: | lightweight hydraulic motor,bmp hydraulic motor | ||
Gerotor Hydraulic Motor BMR, OMR alternative Eaton 103- , 106-.
BMR indroduction:
This motor is a Gerotor Hydraulic Motor, also called Orbit Hydraulic Motor, or Low Speed High Torque Hydraulic Motor, also spool valve hydraulic motor.
Characteristics:
This motor produced by Xeriwell Technology from China, it's a alternative gerotor hydraulic motor to Eaton Char lynn S, T, W series, also alternative with OMR series, also alternative with M+S MR series, and alternative with many other manufacturers from USA and European.
Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
Special design in the driver-linker and prolong operating life
Special design for distribution system can meet the requirement of low noise of unit.
Compact volume and easy installation.
What benefit can i get?
As it's performance is 98% near the below manufacturers, however it's price is more than 50% lower than the below manufacturers, it has been widely used in the Agricultural machines, forestry machines, mining machinery, construction plant, access platforms, grass cutting machinery, special vehicles, ship equipment and winches on fishing vessels, machine tools, woodworking machinery, plastic and rubber machinery, aeria plant, platic moulding machine, sweepers, wood processing machines, and many more hydraulic systems that need rolling, lifting, conveying applications. If you sell $1,000,000 a year, you raise profit by 50%, $500,000.
Xeriwell BMR-250-2ADB = Eaton Char lynn S, T, W series, from USA
Xeriwell BMR-250-2ADB = OMR series, from Danmark
Xeriwell BMR-250-2ADB = M+S MR series, from Bulgaria
we have strong ability to match OEM part no. and provide you.
BMR series gerotor hydraulic motor replace Eaton 'S' series, 103-, 106-

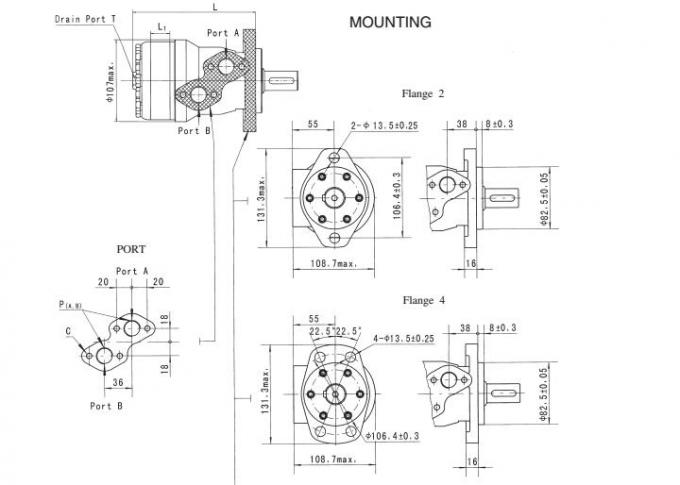

Specifications/ Technical Data:
This Gerotor Hydraulic Motor BMR is a small motor compare with other series like BMS(OMS,MS, MSY), BMT(OMT, MT), BMV(OMV, MV), it's displacement start from 36 ml/r to 375 ml/r, speed from 155 rpm to 1520 ml/r, torque from 72 N.m to 830 N.m, max output from 7.5 kw to 15 kw, max flow from 45 L/min to 75 L/min. Below is the detail specifications of this BMR gerotor hydraulic motors.
| Main Specifications: |
| Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Technical data for BMR with 31.75 and 32 shaft:
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1250 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1520 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 380 | 450 | 540 | 550 | 580 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 500 | 610 | 690 | 690 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 710 | 840 | 830 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 11 | 10 | 9 | 7.5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 12 | 10 | 9 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 13.5 | 11.5 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 20 | 20 | 17.5 | 15 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 45 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 55 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
| * Continuous pressure:Max.value of operating motor continuously. * Intermittent pressure:Max.value of operating motor in 6 seconds per minute . * Peak pressure:Max.value of operating motor in 0.6 second per minute. |
How to work with Xeriwell Technology?
Inorder to make you better understand how to work with us, here i give you the steps:
discuss your demand with us first
we help you to confirm the products
match with our models
discuss your demand quantity with us, this will help us to provide you our best offer
we make a deal on the offer
sign a contract
you pay deposit
we produce
you pay balance payment after order ready for shipping
dispatch order
Payment terms: 30% deposit, 70% balance should be paid before shipping
Shipping: by sea, by air, by train
Terms: FOB, CFR, CIF
Loading port: Tianjin, Qingdao, Shanghai, Ningbo, China
What is you warranty period?
For your further better understand what after-sale service we are offering, here i give you the details:
each item supplied by 'Xeriwell' will be tested on it's testing plant at leaset twice
each item supplied by 'Xeriwell' will with a quality certificate
charge-free products, parts and services will be provided if any failures or defects of the contractual product in normal operation condition within the warranty period.
all of our product practice protect the quality 1 year.
